Griffith Powerline Construction
Powerline construction in Griffith plays a vital role in getting properties, developments and infrastructure connected safely and efficiently. At Country Powerline Constructions, we work with clients across a wide range of project types — from rural blocks and commercial sites to multi-lot developments. Our team is licensed, experienced, and focused on meeting the technical and compliance requirements of each build while delivering a straightforward experience on-site.
We install both overhead and underground systems, working from approved designs and staying aligned with the distributor’s standards at every stage. We know the value of clear communication, tidy work and practical timelines. If you need reliable powerline construction in Griffith, give us a call on 02 6882 0354 and we’ll help you get started.
How We Install Powerlines

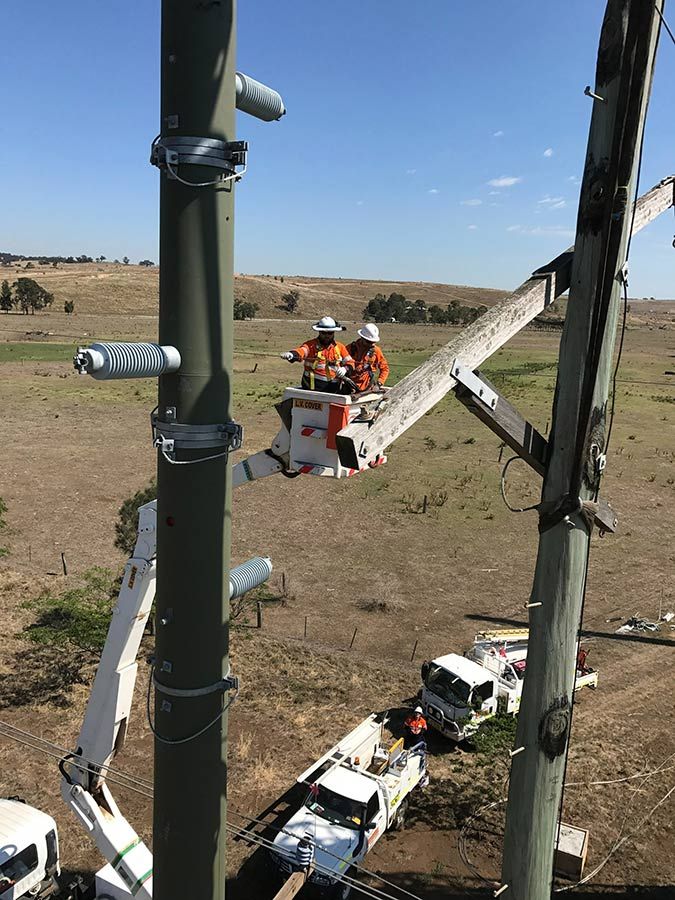

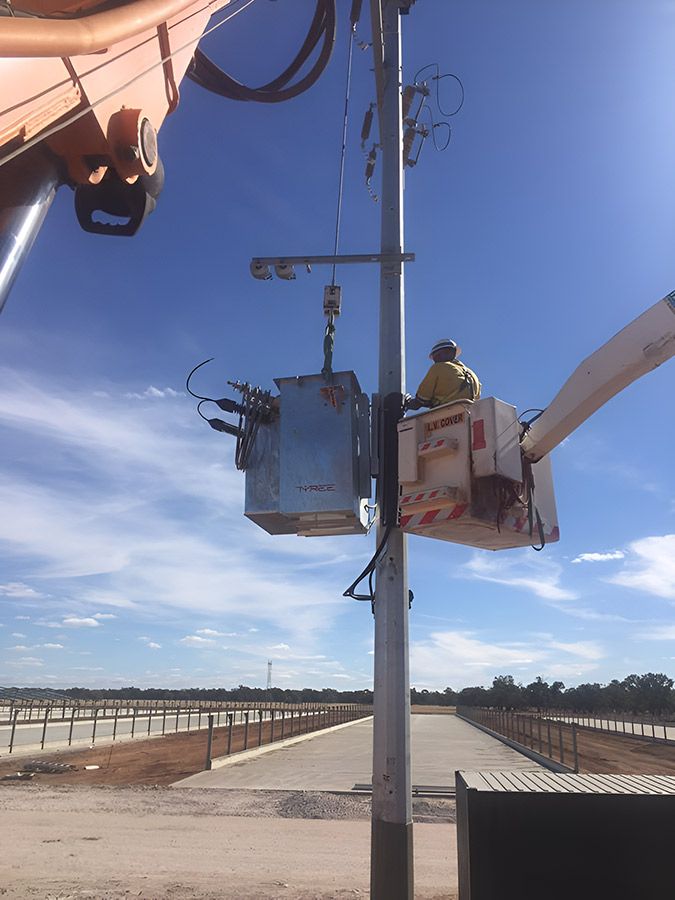

Our first step is to confirm the site layout and mark out all critical locations for poles or trenching. For overhead systems, we prepare and drill pole footings, set supports at the correct height, and install necessary hardware. Conductors are then strung with tension, secured with rated fittings, and checked for spacing and alignment.
For underground installations, our team carries out trenching to the required depth, installs conduit with protective bedding, and draws through the cables with care to prevent damage. All cable ends, joints and terminations are completed to distributor spec. Once installed, we run a full set of tests — including insulation resistance, continuity, and earthing — to confirm the system is safe and functional.
We also manage the final reporting and documentation process, so nothing gets held up when it’s time to connect. The result is a clean, compliant installation, ready to support the long-term power needs of the site.
Frequently Asked Questions
What causes conductor sag, and how is it controlled?
Conductor sag is the downward curve that naturally forms between poles due to gravity and tension. It’s influenced by span length, conductor type, temperature, and wind loading. To control it, installers calculate the appropriate tension and use tools to ensure the sag remains within safety clearance limits. Proper sag prevents contact with trees, structures, or the ground and ensures long-term reliability.
How are cables protected where they enter structures or enclosures?
Where cables enter pits, switchboards or pillars, they’re fitted with protective glands, bushings or conduits to prevent damage from sharp edges, moisture or mechanical stress. These entry points are sealed to keep out water and debris and are arranged to minimise bending stress. This helps maintain the insulation and structural integrity of the cable over time.
Why is separation from telecommunications infrastructure important?
Electrical and telecommunications systems must be kept at a safe distance to avoid electromagnetic interference, physical damage, or safety hazards during future works. Minimum separation distances are enforced to protect both services. During planning, routes are coordinated to ensure each utility has its own accessible space and that maintenance can be performed without risk.
What checks are done before final handover?
Before handover, a full inspection is completed to ensure all components are correctly installed and that the system passes mandatory electrical tests. These include earth resistance, insulation resistance, and conductor continuity. Installers also verify that as-built documentation matches the actual installation. Only after all standards are confirmed is the system submitted for final connection approval.
